Chuango G5 Alarm Pack

Complete wireless alarm system, with notification communication via a phone card. You only need GSM coverage to keep an eye on your home or business. And without any quota or monthly subscription, you will receive alert notifications via your mobile phone, sent directly by the alarm. Furthermore, being completely wireless, you will not have to connect equipment via cables.

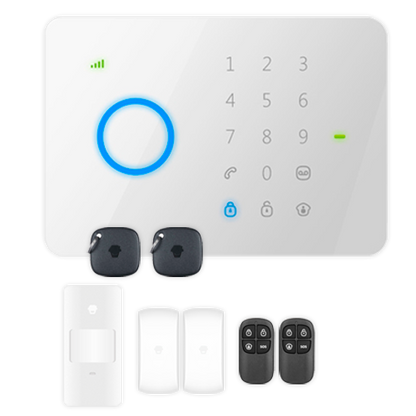

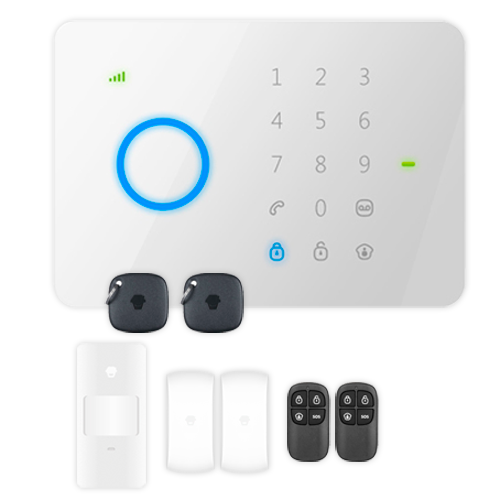

This beautiful kit has everything you need to install an alarm that will alert you on your mobile phone of any attempted theft or intrusion. It consists of a control panel, a PIR motion sensor, two door/window opening detectors, two remote controls, and two RFID proximity cards.

In addition to what is included, if you have a Smartphone (iPhone or Android), you can download the manufacturer's application for free, to configure, arm and disarm the system without complexity.

• Made of methacrylate with touch screen and keyboard
• GSM module, you only need to insert a GSM phone card from any operator
• The control panel will call or text you in case of any event
• Inhibition detection function
• Full on and partial off buttons
• Emergency button to call a predefined number
• Microphone and speaker, designed to check by audio what is happening in your property
• Button to record a voice message that will be stored in the system
• Internal siren, with configurable volume
• RFID proximity badge reader
• Attractive design, will not harm the aesthetics of your home or business
• 12V DC power supply included, to power the system
• 3.7V battery for backup in case of power outage

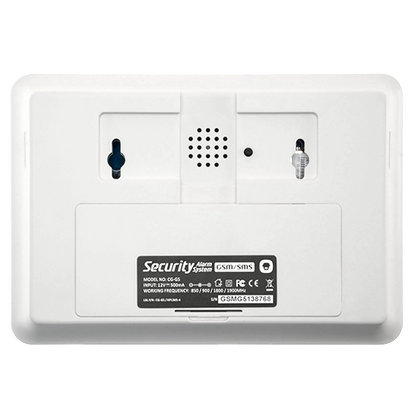

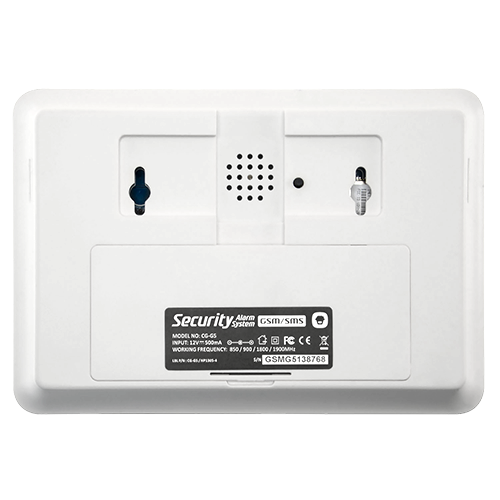

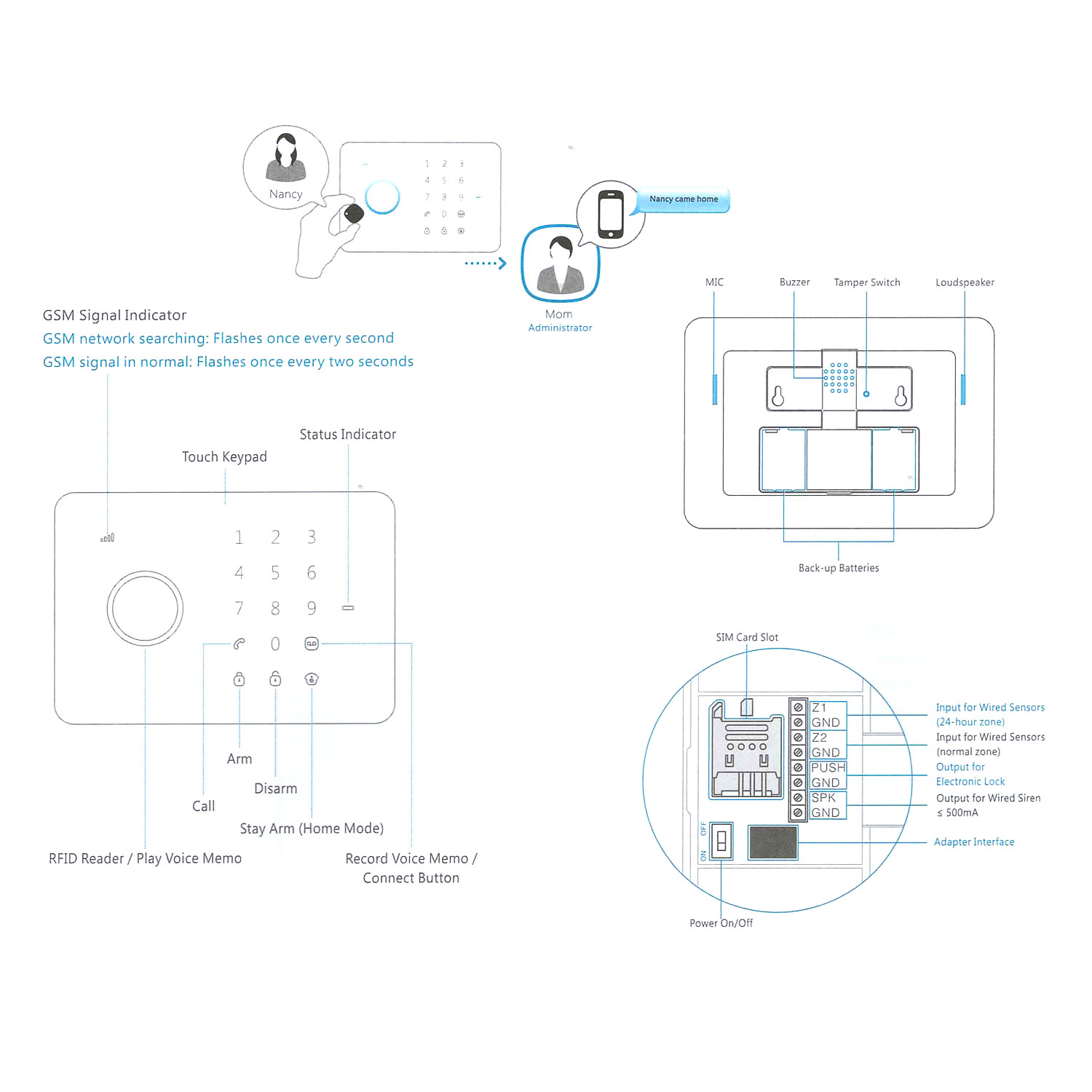

Control Panel

• Model G5

• Working GSM frequency 850/900/1800/1900 MHz

• AC power input 110V-240V, 50/60Hz

• Power output DC 12V 500mA, 6Wh

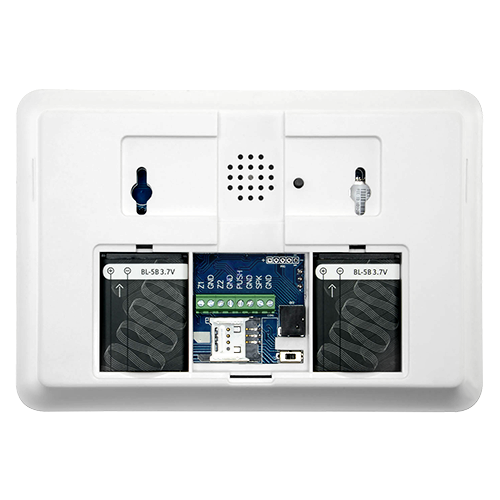

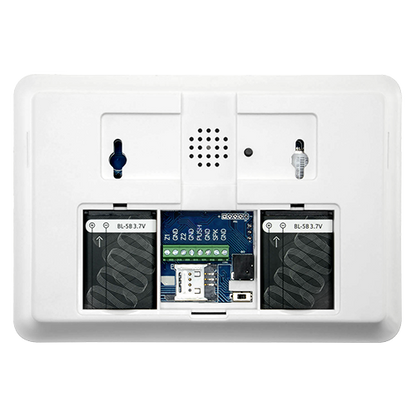

• Backup Battery Lithium Battery: 3.7V 700mAh

• Internal siren 95 dB (Maximum Volume)

• Frequency 433 MHz (± 75 KHz) with inhibition detection

• Maximum number of accessories 10 remote controls, 50 wireless sensors, 50 TAGs

• Outer shell material ABS plastic

• Operating temp. -10º C ~ 55º C

• Relative humidity ≤ 80% (non-condensing)

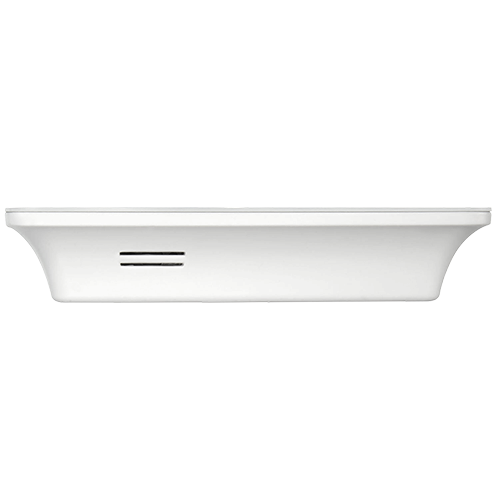

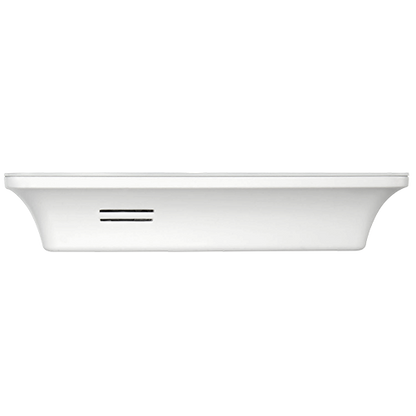

• Dimensions 132 (Al) x 188 (Al) x 26 (An) mm


Magnetic Contact

• Power supply 1 1.5 V AA battery

• Transmission distance ≤ 80 m (in open space)

• Frequency 433 MHz (± 75 KHz)

• Outer shell material ABS plastic

• Relative humidity ≤ 80% (non-condensing)

• Transmitter dimensions 71 (H) x 34 (W) x 17.5 (D) mm

• Magnetic dimensions 51 (H) x 12 (W) x 13.5 (D) mm


Pir detector

• Power supply: 2 x 1.5V AA batteries

• Detection fields 8 m / 110º

• Transmission distance ≤ 80 m (in open space)

• Frequency 433 MHz (± 75 KHz)

• Outer shell material ABS plastic

• Operating temp. -10º C ~ 55º C

• Relative humidity ≤ 80% (non-condensing)

• Dimensions (without stand) 108 (H) x 52 (W) x 36.8 (D) mm

• Support dimensions 52 (H) x 30 (W) x 26.5 (D) mm
